Product Details
+Description

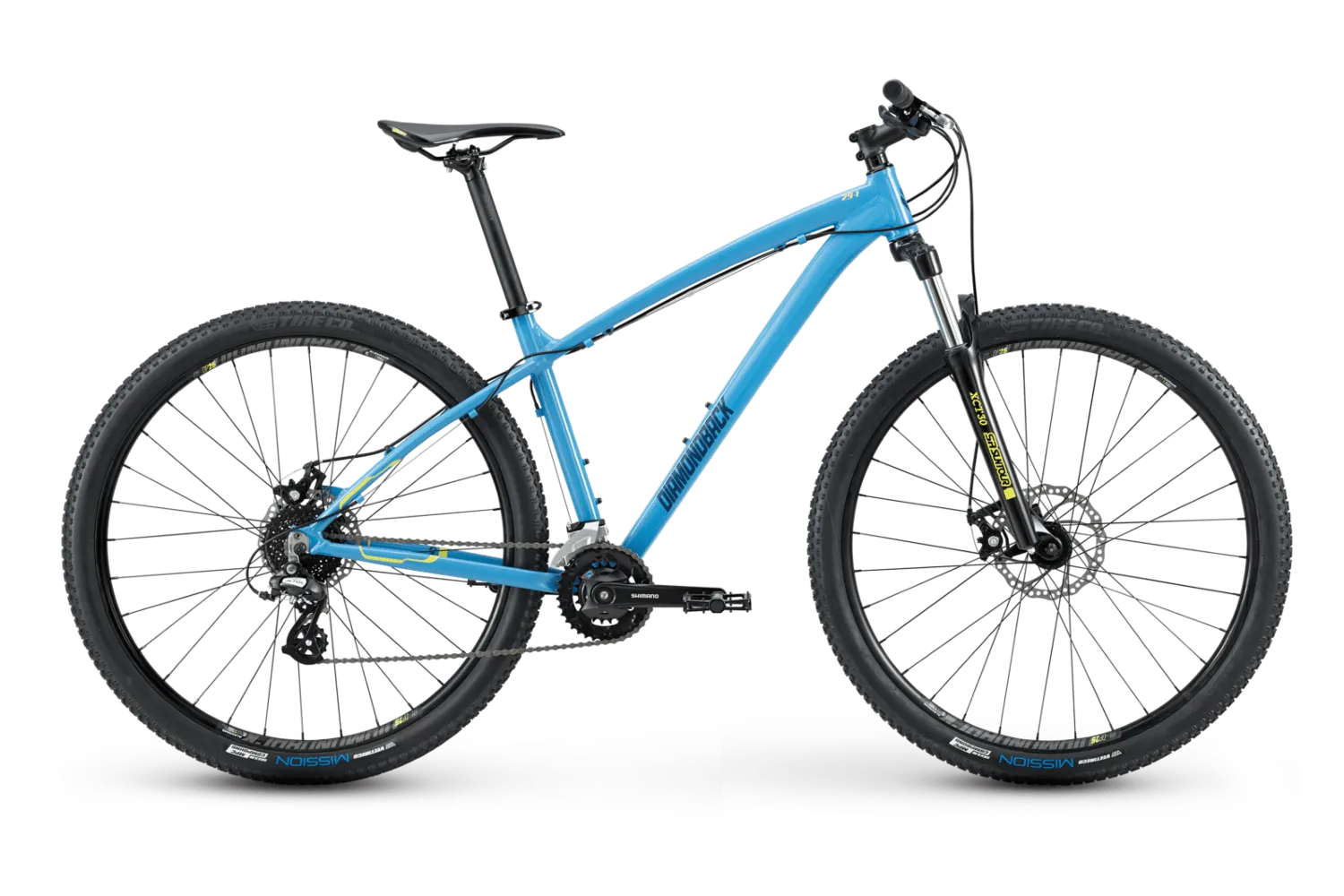

Classic hardtail efficiency and precision that’s easy on the bank account.
Premium performance doesn’t always require a premium price tag. With the Overdrive 29 1, Diamondback took their lightweight, hand-built aluminum frame and decked it out with a wallet-friendly combination of components that will have you tackling the toughest terrain with total confidence. 29ers are famous for smoothing out rocky bits of trail and for maintaining momentum on those long rides when you’re pushing your limits. This bike has all that going for it, and it sports an ultra-wide range of gears that click off shifts with the kind of accuracy Shimano is famous for. Tektro mechanical disc brakes make reigning in the speed easy, and the Suntour XCT fork offers up years of silky-smooth coil-sprung suspension. Looking to get the most bang for your buck? Look no further.
Features
- Lightweight 6061-T6 aluminum alloy frame with forged dropouts
- SR Suntour XCT fork provides 100mm of supple coil-sprung suspension
- Tektro Aries mechanical disc brakes increase your control
- Shimano 3x8 Acera drivetrain provides ample gearing for the steepest climbs
- 29” wheels roll easily over obstacles, provide great traction and a stable ride
Specifications
Frame | Overdrive 29" Butted 6061-T6 Aluminum, Forged Drop Outs, w/ Replaceable Hanger, Disc Only |
Fork | SR Suntour XCT 29", Coil Spring, 100mm Travel, w/ Preload Adjust |
Headset | FSA IS-3/NO.11 Integrated Style |
Cranks | Suntour XCC, 42/32/22T |
Bottom Bracket | Steel Cartridge, 122mm Spindle |
Front Derailleur | Shimano Tourney TX800, Top Swing, Dual Pull, 34.9mm Clamp Diameter |
Rear Derailleur | Shimano Acera M360, 8 Speed |
Shifter | Shimano EF-510 Easyfire, 3x8 Speed |
Cogset (Cassette/Freewheel) | Shimano HG31 Cassette, 8 Speed, 11-32T |
Chain | KMC Z82, 8 Speed |
Front Hub | 32h Alloy w/ CNC Disc Mount |
Rear Hub | 32h Alloy Cassette w/ CNC Disc mount |
Spokes | 14g Stainless Steel |
Rims | U28, 32 Hole with 22.4 ID; Doublewall |
Tires | Schwalbe Rapid Rob, Kevlarguard, 29x2.25" |
Brakes | Tektro Aries Mechanical Disc w/ 180mm Front / 160mm Rear Rotors |
Brake Levers | Shimano EF-51 |
Pedals | DB4L Alloy Platform |
Handlebar | DB Laser Series, 720mm Wide, 15mm Rise, 31.8mm Bar Bore |
Grips | DB4L 135mm Kraton |
Stem | DB 3D Forged, 7° Rise, 31.8 Bar Bore |
Seat | DB Race M-Series Saddle |
Seatpost | DB Alloy Micro Adjust, 30.9mm |
Extras | Tool Kit |
Geometry
Bike Size | SM/16" Rider Height: 5'4" - 5'7" | MD/18" Rider Height: 5'7" - 5'10" | LG/20" Rider Height: 5'10" - 6'1" | XL/22" Rider Height: 6'1" - 6'4" | |
---|---|---|---|---|---|
Seat Tube Length | 400.0mm | 450.0mm | 500.0mm | 550.0mm | |
Stand Over Height | 767.0mm | 782.0mm | 810.0mm | 831.0mm | |
Top Tube Length | 580.0mm | 609.0mm | 630.0mm | 648.0mm | |
Stack | 597.0mm | 607.0mm | 624.0mm | 653.0mm | |
Reach | 397.0mm | 423.0mm | 440.0mm | 454.0mm | |
Head Tube Length | 95.0mm | 105.0mm | 120.0mm | 135.0mm | |
Head Angle | 71.0° | 71.0° | 71.0° | 71.0° | |
Seat Angle | 73.0° | 73.0° | 73.0° | 73.0° | |
Wheel Base | 1074.0mm | 1104.0mm | 1125.0mm | 1144.0mm | |
Chain Stay Length | 450.0mm | 450.0mm | 450.0mm | 450.0mm | |
Fork Offset | 46.0mm | 46.0mm | 46.0mm | 46.0mm | |
BB Drop | 65.0mm | 65.0mm | 65.0mm | 65.0mm | |
Stem Length | 70.0mm | 70.0mm | 80.0mm | 80.0mm | |
Handlebar Width | 740.0mm | 740.0mm | 740.0mm | 740.0mm | |
Crank Length | 170.0mm | 175.0mm | 175.0mm | 175.0mm | |
Seat Post Length | 350.0mm | 350.0mm | 350.0mm | 350.0mm |
